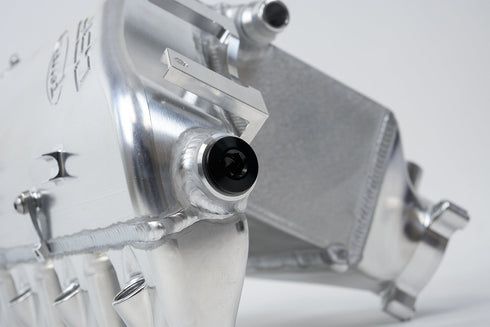

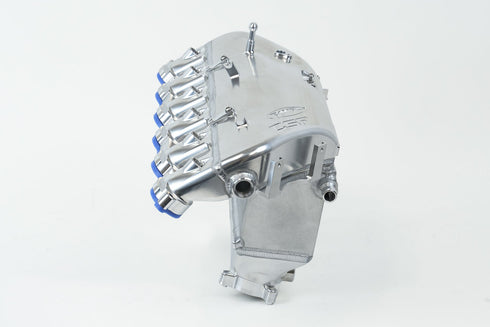

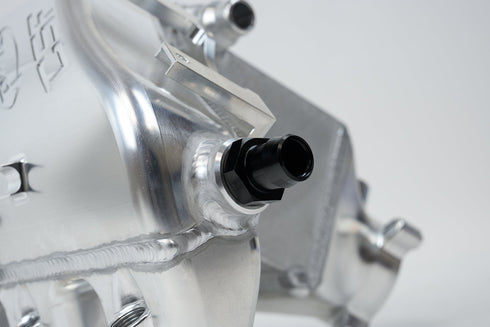

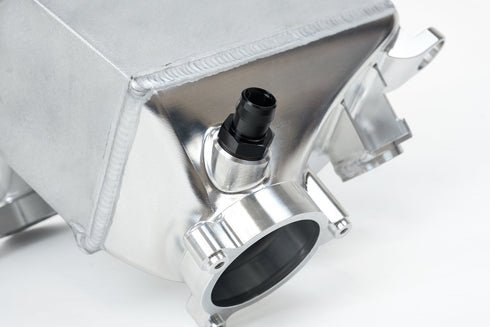

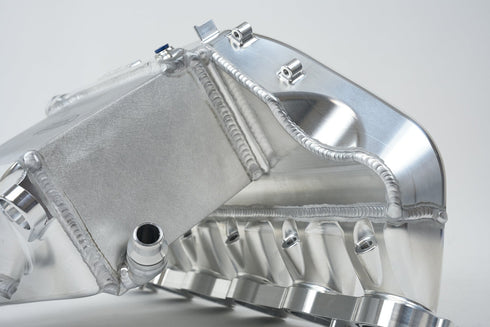

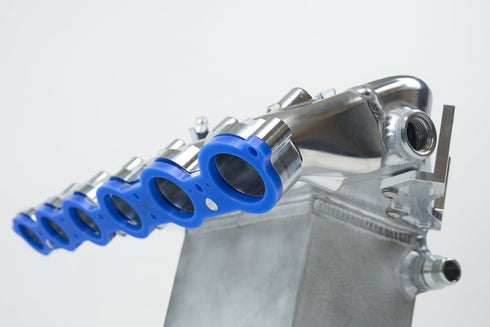

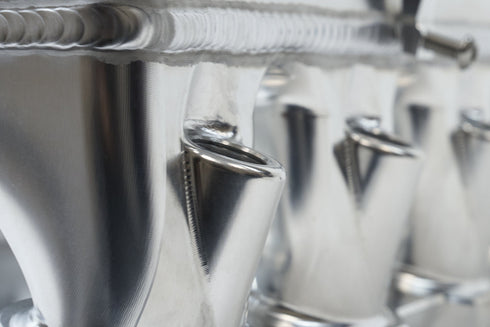

CSF - BMW S58 -Level-Up- Charge Air Cooler Manifold - Thermal Dispersion Black
£7,211.40
In stock
Tax included.
Shipping calculated at checkout.
Free UK Mainland Shipping On Orders Over £99
By now pay Later with Klarna
4.8 / 5 Stars On Trust Pilot
CSF BMW S58 -Level-Up- Charge Air Cooler Manifold - Thermal Dispersion Black

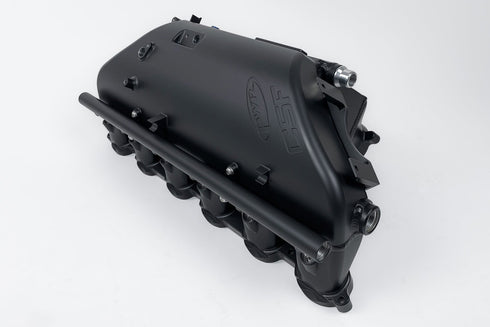

The CSF #8233B comes in a Thermal Black Heat Dispersion finish. Also available in raw billet aluminum (CSF #8233) & in custom colors/finishes (CSF #8233C).
- Reduced Intake Air Temperatures (IATs) compared to OEM

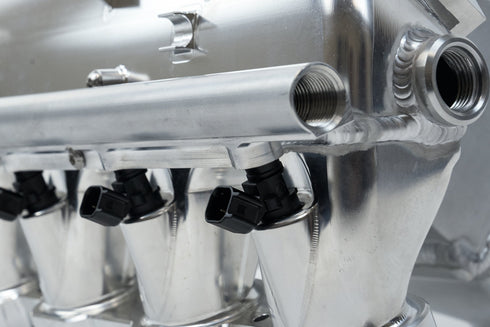

- Integrated port injection with fuel rail (provided with block-off bungs if not running port injection)

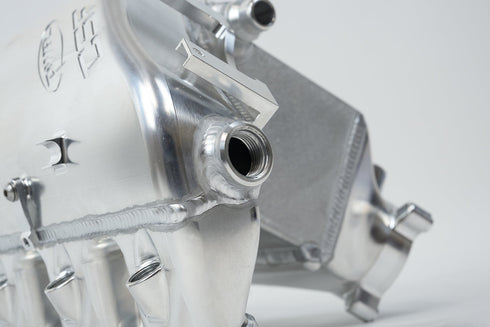

- Integrated nitrous ports (provided with block-off bungs if not running nitrous)
- Integrated hose stand-offs for proper routing of EVAP hoses across manifold
- Integrated coolant reservoir mounting locations on rear of manifold for perfect fitment
- Various wire harness provisions for perfect routing of wiring harness around manifold

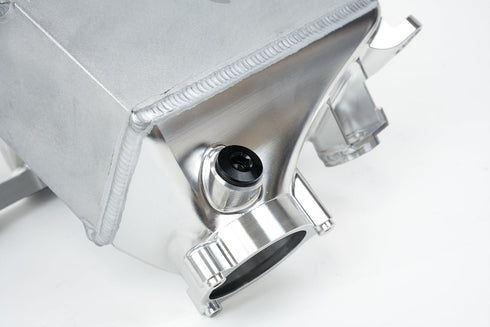

- Integrated bleeder screw

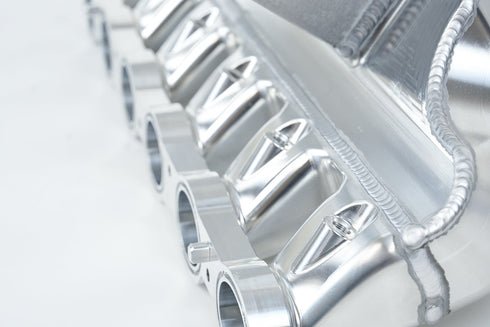

- OEM teeth on intake manifold flange for secure seating of gaskets
- Machined coolant hose quick connects
- Removable machined engine cover pin for perfect fitment with engine cover

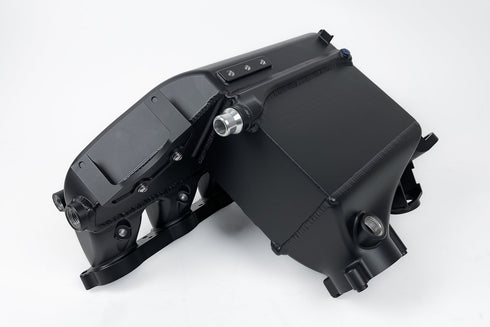

- Thermal Black Heat Dispersion Powder-Coating Finish
- Less pressure drop compared to OEM core
- All necessary brackets, hardware, and instructions to install
- Ultra strong CNC Billet construction replaces weak plastic tanks with crimped-on gasket sealing core

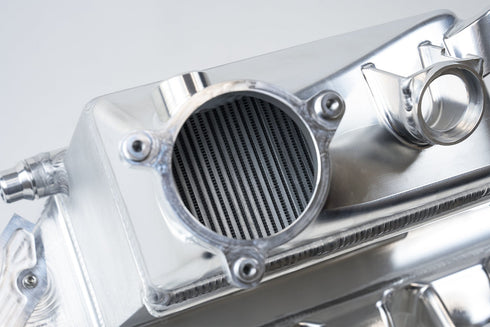

- High performance bar/plate intercooler core by PWR pressure tested to 120psi
- KYLEX thermal spacer for the best resistance to heat soak of the manifold.
- Perimeter pad machined into top of intake manifold for up to 3 additional sensors
- Rear of the intake manifold has been clearance for easy access to the engine oil filter

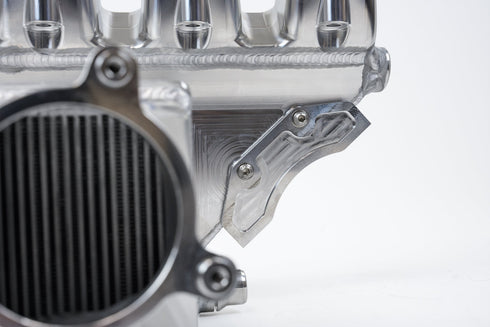

- CNC front wire harness bracket for OEM fitment and slotted easy installation
- Upper crank case ventilation adapter and Lower crank case ventilation adapter
Attributes
- GTIN: 00710353082331
- Brand Name: CSF Cooling - Racing & High Performance Division
- ADD-ON: 8266
- Core Material: Aluminum
Extended Information
- Country of Origin: US
- Emissions : 1
- Life Cycle Status: Available To Order
Packing Information
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 26 x 16 x 18 inches
- Weight: 26 lb
Applications
| BMW | M2 | 2024 | Base | Thermal Black Heat Dispersion Cerakote; Region: United States; Position: Center; |
| BMW | M2 | 2024 | Coupe | Thermal Black Heat Dispersion Cerakote; Region: Mexico; Position: Center; |
| BMW | M2 | 2023 | Thermal Black Heat Dispersion Cerakote; Aspiration: Turbocharged; EngineBase: 3.0 L (2993 cc) L6 Bore: 3.31 in.(84.0mm) Stroke: 3.54 in.(90.0mm); Position: Center; | |
| BMW | M3 | 2024 | Base | Thermal Black Heat Dispersion Cerakote; Region: United States; Position: Center; |
| BMW | M3 | 2024 | Competition | Thermal Black Heat Dispersion Cerakote; Region: United States; Position: Center; |
| BMW | M3 | 2024 | Competition xDrive | Thermal Black Heat Dispersion Cerakote; Region: United States; Position: Center; |
| BMW | M3 | 2024 | CS | Thermal Black Heat Dispersion Cerakote; Region: United States; Position: Center; |
| BMW | M3 | 2023 | Thermal Black Heat Dispersion Cerakote; Aspiration: Turbocharged; EngineBase: 3.0 L (2993 cc) L6 Bore: 3.31 in.(84.0mm) Stroke: 3.54 in.(90.0mm); Position: Center; | |
| BMW | M3 | 2023 | Competition | Thermal Black Heat Dispersion Cerakote; Aspiration: Turbocharged; EngineBase: 3.0 L (2993 cc) L6 Bore: 3.31 in.(84.0mm) Stroke: 3.54 in.(90.0mm); Position: Center; |
| BMW | M3 | 2023 | Competition xDrive | Thermal Black Heat Dispersion Cerakote; Aspiration: Turbocharged; EngineBase: 3.0 L (2993 cc) L6 Bore: 3.31 in.(84.0mm) Stroke: 3.54 in.(90.0mm); Position: Center; |
| BMW | M3 | 2022 | Thermal Black Heat Dispersion Cerakote; Aspiration: Turbocharged; EngineBase: 3.0 L (2993 cc) L6 Bore: 3.31 in.(84.0mm) Stroke: 3.54 in.(90.0mm); Position: Center; | |
| BMW | M3 | 2022 | Competition | Thermal Black Heat Dispersion Cerakote; Aspiration: Turbocharged; EngineBase: 3.0 L (2993 cc) L6 Bore: 3.31 in.(84.0mm) Stroke: 3.54 in.(90.0mm); Position: Center; |
| BMW | M3 | 2022 | Competition xDrive | Thermal Black Heat Dispersion Cerakote; Aspiration: Turbocharged; EngineBase: 3.0 L (2993 cc) L6 Bore: 3.31 in.(84.0mm) Stroke: 3.54 in.(90.0mm); Position: Center; |
| BMW | M3 | 2021 | Thermal Black Heat Dispersion Cerakote; Aspiration: Turbocharged; EngineBase: 3.0 L (2993 cc) L6 Bore: 3.31 in.(84.0mm) Stroke: 3.54 in.(90.0mm); Position: Center; | |
| BMW | M3 | 2021 | Competition | Thermal Black Heat Dispersion Cerakote; Aspiration: Turbocharged; EngineBase: 3.0 L (2993 cc) L6 Bore: 3.31 in.(84.0mm) Stroke: 3.54 in.(90.0mm); Position: Center; |
| BMW | M4 | 2024 | Base | Thermal Black Heat Dispersion Cerakote; Region: United States; Position: Center; |
| BMW | M4 | 2024 | Competition | Thermal Black Heat Dispersion Cerakote; Region: United States; Position: Center; |
| BMW | M4 | 2024 | Competition xDrive | Thermal Black Heat Dispersion Cerakote; Region: United States; Position: Center; |
| BMW | M4 | 2024 | CSL | Thermal Black Heat Dispersion Cerakote; Region: United States; Position: Center; |
| BMW | M4 | 2023 | Thermal Black Heat Dispersion Cerakote; Aspiration: Turbocharged; EngineBase: 3.0 L (2993 cc) L6 Bore: 3.31 in.(84.0mm) Stroke: 3.54 in.(90.0mm); Position: Center; | |
| BMW | M4 | 2023 | Competition | Thermal Black Heat Dispersion Cerakote; Aspiration: Turbocharged; EngineBase: 3.0 L (2993 cc) L6 Bore: 3.31 in.(84.0mm) Stroke: 3.54 in.(90.0mm); Position: Center; |
| BMW | M4 | 2023 | Competition xDrive | Thermal Black Heat Dispersion Cerakote; Aspiration: Turbocharged; EngineBase: 3.0 L (2993 cc) L6 Bore: 3.31 in.(84.0mm) Stroke: 3.54 in.(90.0mm); Position: Center; |
| BMW | M4 | 2022 | Thermal Black Heat Dispersion Cerakote; Aspiration: Turbocharged; EngineBase: 3.0 L (2993 cc) L6 Bore: 3.31 in.(84.0mm) Stroke: 3.54 in.(90.0mm); Position: Center; | |
| BMW | M4 | 2022 | Competition | Thermal Black Heat Dispersion Cerakote; Aspiration: Turbocharged; EngineBase: 3.0 L (2993 cc) L6 Bore: 3.31 in.(84.0mm) Stroke: 3.54 in.(90.0mm); Position: Center; |
| BMW | M4 | 2022 | Competition xDrive | Thermal Black Heat Dispersion Cerakote; Aspiration: Turbocharged; EngineBase: 3.0 L (2993 cc) L6 Bore: 3.31 in.(84.0mm) Stroke: 3.54 in.(90.0mm); Position: Center; |
| BMW | M4 | 2021 | Thermal Black Heat Dispersion Cerakote; Aspiration: Turbocharged; EngineBase: 3.0 L (2993 cc) L6 Bore: 3.31 in.(84.0mm) Stroke: 3.54 in.(90.0mm); Position: Center; | |
| BMW | M4 | 2021 | Competition | Thermal Black Heat Dispersion Cerakote; Aspiration: Turbocharged; EngineBase: 3.0 L (2993 cc) L6 Bore: 3.31 in.(84.0mm) Stroke: 3.54 in.(90.0mm); Position: Center; |
| BMW | M4 | 2021 | Competition xDrive | Thermal Black Heat Dispersion Cerakote; Aspiration: Turbocharged; EngineBase: 3.0 L (2993 cc) L6 Bore: 3.31 in.(84.0mm) Stroke: 3.54 in.(90.0mm); Position: Center; |
| BMW | X3 | 2024 | M | Thermal Black Heat Dispersion Cerakote; Region: United States; Position: Center; |
| BMW | X3 | 2024 | M Competition | Thermal Black Heat Dispersion Cerakote; Region: Mexico; Position: Center; |
| BMW | X3 | 2023 | M | Thermal Black Heat Dispersion Cerakote; Aspiration: Turbocharged; EngineBase: 3.0 L (2993 cc) L6 Bore: 3.31 in.(84.0mm) Stroke: 3.54 in.(90.0mm); Position: Center; |
| BMW | X3 | 2023 | M Competition | Thermal Black Heat Dispersion Cerakote; Aspiration: Turbocharged; EngineBase: 3.0 L (2993 cc) L6 Bore: 3.31 in.(84.0mm) Stroke: 3.54 in.(90.0mm); Position: Center; |
| BMW | X3 | 2022 | M | Thermal Black Heat Dispersion Cerakote; Aspiration: Turbocharged; EngineBase: 3.0 L (2993 cc) L6 Bore: 3.31 in.(84.0mm) Stroke: 3.54 in.(90.0mm); Position: Center; |
| BMW | X3 | 2022 | M Competition | Thermal Black Heat Dispersion Cerakote; Aspiration: Turbocharged; EngineBase: 3.0 L (2993 cc) L6 Bore: 3.31 in.(84.0mm) Stroke: 3.54 in.(90.0mm); Position: Center; |
| BMW | X3 | 2021 | M | Thermal Black Heat Dispersion Cerakote; Aspiration: Turbocharged; EngineBase: 3.0 L (2993 cc) L6 Bore: 3.31 in.(84.0mm) Stroke: 3.54 in.(90.0mm); Position: Center; |
| BMW | X3 | 2021 | M Competition | Thermal Black Heat Dispersion Cerakote; Aspiration: Turbocharged; EngineBase: 3.0 L (2993 cc) L6 Bore: 3.31 in.(84.0mm) Stroke: 3.54 in.(90.0mm); Position: Center; |
| BMW | X3 | 2020 | M | Thermal Black Heat Dispersion Cerakote; Aspiration: Turbocharged; EngineBase: 3.0 L (2993 cc) L6 Bore: 3.31 in.(84.0mm) Stroke: 3.54 in.(90.0mm); Position: Center; |
| BMW | X3 | 2020 | M Competition | Thermal Black Heat Dispersion Cerakote; Aspiration: Turbocharged; EngineBase: 3.0 L (2993 cc) L6 Bore: 3.31 in.(84.0mm) Stroke: 3.54 in.(90.0mm); Position: Center; |
| BMW | X4 | 2024 | M | Thermal Black Heat Dispersion Cerakote; Region: United States; Position: Center; |
| BMW | X4 | 2024 | M Competition | Thermal Black Heat Dispersion Cerakote; Region: Mexico; Position: Center; |
| BMW | X4 | 2023 | M Competition | Thermal Black Heat Dispersion Cerakote; Aspiration: Turbocharged; EngineBase: 3.0 L (2993 cc) L6 Bore: 3.31 in.(84.0mm) Stroke: 3.54 in.(90.0mm); Position: Center; |
| BMW | X4 | 2022 | M | Thermal Black Heat Dispersion Cerakote; Aspiration: Turbocharged; EngineBase: 3.0 L (2993 cc) L6 Bore: 3.31 in.(84.0mm) Stroke: 3.54 in.(90.0mm); Position: Center; |
| BMW | X4 | 2022 | M Competition | Thermal Black Heat Dispersion Cerakote; Aspiration: Turbocharged; EngineBase: 3.0 L (2993 cc) L6 Bore: 3.31 in.(84.0mm) Stroke: 3.54 in.(90.0mm); Position: Center; |
| BMW | X4 | 2021 | M | Thermal Black Heat Dispersion Cerakote; Aspiration: Turbocharged; EngineBase: 3.0 L (2993 cc) L6 Bore: 3.31 in.(84.0mm) Stroke: 3.54 in.(90.0mm); Position: Center; |
| BMW | X4 | 2021 | M Competition | Thermal Black Heat Dispersion Cerakote; Aspiration: Turbocharged; EngineBase: 3.0 L (2993 cc) L6 Bore: 3.31 in.(84.0mm) Stroke: 3.54 in.(90.0mm); Position: Center; |
| BMW | X4 | 2020 | M | Thermal Black Heat Dispersion Cerakote; Aspiration: Turbocharged; EngineBase: 3.0 L (2993 cc) L6 Bore: 3.31 in.(84.0mm) Stroke: 3.54 in.(90.0mm); Position: Center; |
| BMW | X4 | 2020 | M Competition | Thermal Black Heat Dispersion Cerakote; Aspiration: Turbocharged; EngineBase: 3.0 L (2993 cc) L6 Bore: 3.31 in.(84.0mm) Stroke: 3.54 in.(90.0mm); Position: Center; |
