HEL Aluminium 1/4" NPT Male to 1/4" NPT Female Straight Oil Pressure Adapter with 1/8" NPT Sensor Port (Short Version)
Free UK Mainland Shipping On Orders Over £99
9am - 6pm Live Chat Help
4.7 / 5 Stars On Trust Pilot
Compatible with a wide range of engine blocks, our oil pressure sensor t-piece adapter is designed for installation at the original oil pressure switch location. This adapter allows the straightforward integration of a 1/8" NPT sensor or a redirection of oil flow to an external oil pressure gauge to monitor your oil pressure with ease.

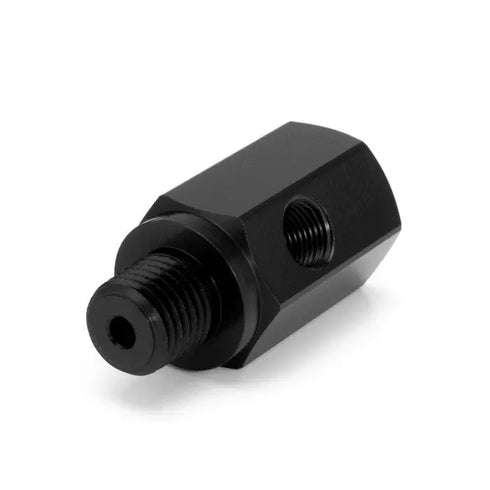

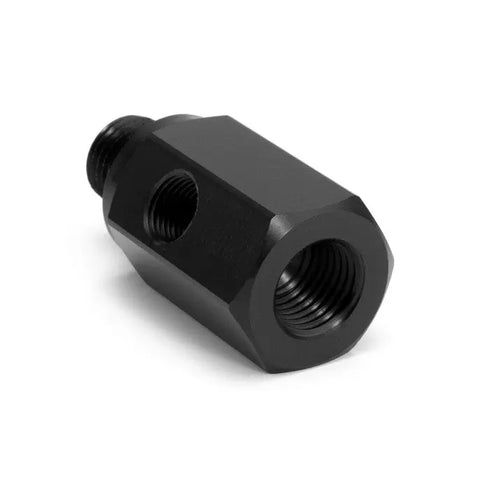

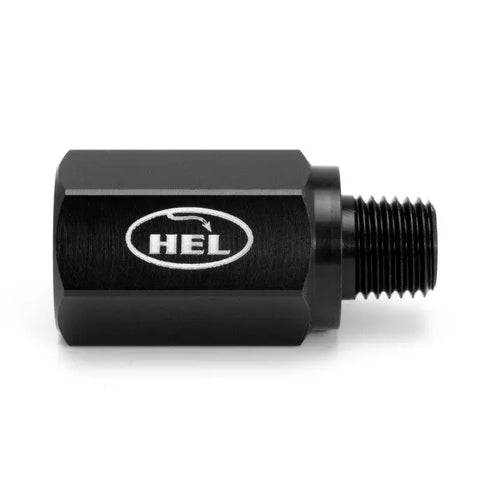

Located in the centre of the adapter body, is a 1/8" NPT female threaded sensor port. Either side of the body is a male threaded 1/4" NPT inlet and a female threaded 1/4" NPT outlet. The sensor port can be blocked off with a 1/8" NPT blanking plug if not in use.
The HEL Performance range of high-quality adapters and fittings allow for flexibility in routing fluid lines such as fuel, oil and water in a vast range of applications throughout the motorsport and automotive industry. Our fittings and adapters are CNC Machined from aluminium, offering excellent resistance to corrosion and wear, ensuring the longevity and durability of the fittings even in harsh automotive environments.
Manufactured from 6061-T6 aluminium, our fittings and adapters are available in a hard-wearing anodised Black finish.
Specifications
Adapter Type | NPT Oil Pressure Sensor Adapter |
Inlet Size (Male) | 1/4" NPT |
Outlet Size (Female) | 1/4" NPT |
Port Size (Sensor/Plug) | 1/8" NPT |
Length (Overall - Incl. Thread) | 48.0mm / 1.89" |
Length (Body) | 36.1mm / 1.42" |
Width (Hex Body) | 22.0mm / 0.87" |
Port Plug Included? | No |
Material | 6061-T6 Aluminium |
Finish | Anodised Black |
Brand | HEL Performance |
What's Included
- 1x NPT Oil Pressure Sensor Adapter
