HEL Oil Filter Sandwich Plate Spacer with 1/8" NPT Sensor Ports
Welcome to the HEL Performance range of high-quality, dependable and unrivalled oil system components. Our widely embraced, race-winning products have not only secured victories on the race track but have also been rigorously tested on the open road.
What sets us apart is simple yet significant; we handle the entire CNC machining process in-house for our complete range of oil system components. This gives us full control over the manufacturing process, leading to exceptional quality and faultless products. This commitment guarantees longevity and unwavering durability, even when used in the most demanding and challenging environments.

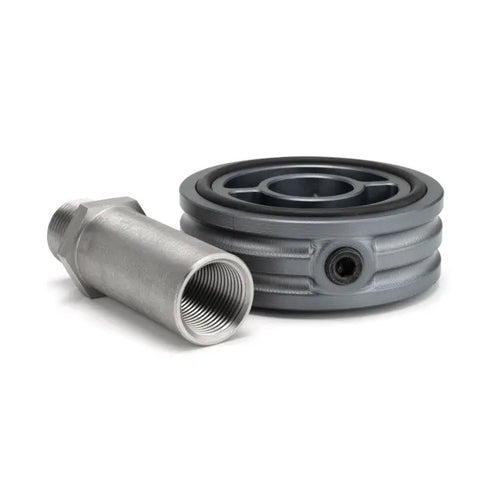

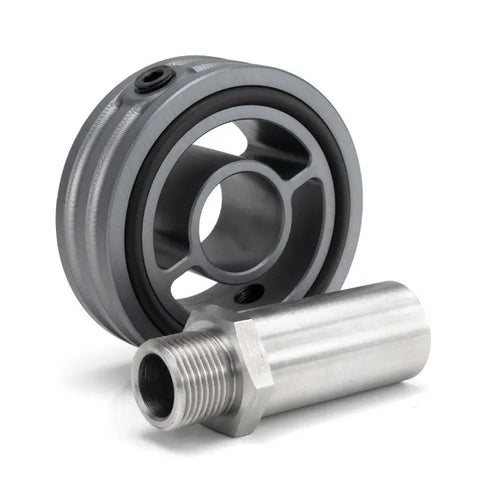

The HEL Performance oil filter sandwich plate spacer is directly compatible with all variations of our oil filter sandwich plates and has been designed for applications where the sandwich plate would directly foul on any protruding parts of the engine block, ancillaries or the original oil filter housing. This version of our sandwich plate spacer features 2x 1/8" NPT threaded ports to allow the integration of an oil pressure sensor or oil temperature sensor. If you don't require the addition of sensor ports, you can either leave them blank or purchase our standard oil filter sandwich plate spacer.
If your oil system does not currently use an aftermarket oil cooler but you intend to use our oil filter spacer to utilise the additional 1/8" NPT ports for sensor integration, it is essential to select the standard center bolt option when purchasing. The extended centre bolt option is specifically designed for applications using an oil filter sandwich plate.
Designed as a universal product, our sandwich plate spacer can be mounted on various engine blocks. To determine if it's the right fit for your application, please refer to our technical drawings which can be found in the downloadable user manual.
Specifications
Component Type | Oil Filter Sandwich Plate Spacer (w/ Sensor Ports) |
External Diameter | 75mm / 2.95" |
Thickness (Excl. O-Ring) | 24.6mm / 0.97" |
Weight | 186g / 0.41lbs |
Min. Oil Filter O-Ring Diameter | 52mm / 2.04" |
Max. Oil Filter O-Ring Diameter | 75mm / 2.95" |
Additional Ports | 2x 1/8" NPT (For Sensors) |
Centre Bolt Thread | M20 x 1.5 or 3/4"-16 UNF |
Includes O-Ring? | Yes - Nitrile |
Colour | 'HEL' Grey |
Finish | Hard Anodised |
Material | 6082-T6 Aluminium |
Brand | HEL Performance |
Please see our oil system spare parts and accessories range for replacement thermostats, o-rings and other spares.

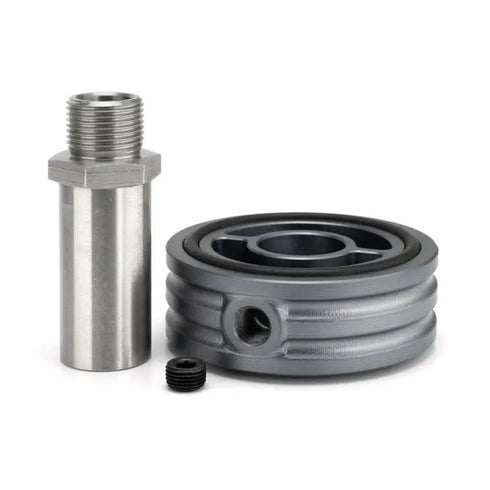

What's Included
- 1x HEL Oil Filter Sandwich Plate Spacer
- 1x Threaded Centre Bolt (Selectable)
- 1x Nitrile O-Ring
- 2x 1/8" NPT Sensor Port Blanking Plugs
