- 1x HEL AN3 Quick Release Dry Break Coupler
HEL Titanium -3 AN Quick Release Dry Break Coupling
€141,95
Made to order
Tax included.
Shipping calculated at checkout.
Fast Shipping Options Available
Buy now pay Later with Klarna
4.8 / 5 Stars On Trust Pilot
Deadline? Message before ordering
Important Information:
Images are for reference only and do not show the exact product you will receive. The product supplied will be specific to your vehicle application. If you have any questions regarding fitment or compatibility, please contact us before placing your order.
These lines are manufactured or supplied specifically to order and are therefore classed as made-to-order items. As a result, this product is not eligible for cancellation or return once production has begun
Please refer to our Refund Policy for full details. Your statutory rights are not affected.
This item is manufactured to order. Lead times may vary based on the chosen colour combination and are usually 5-7 working days before dispatch but can be more, enquire for more accurate lead times.

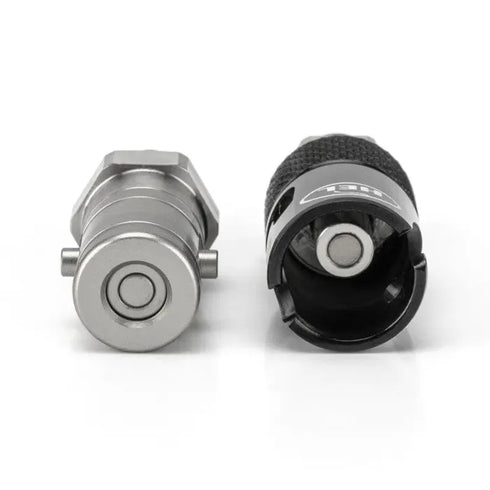

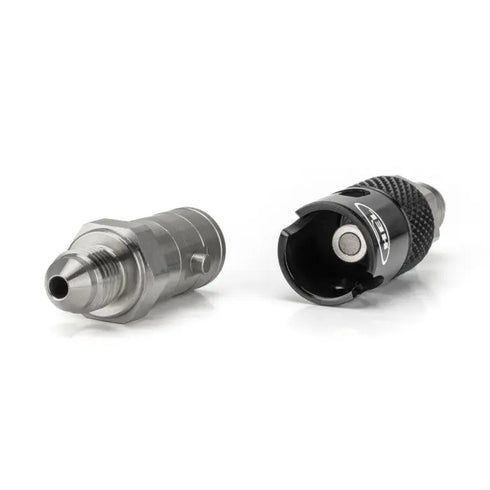

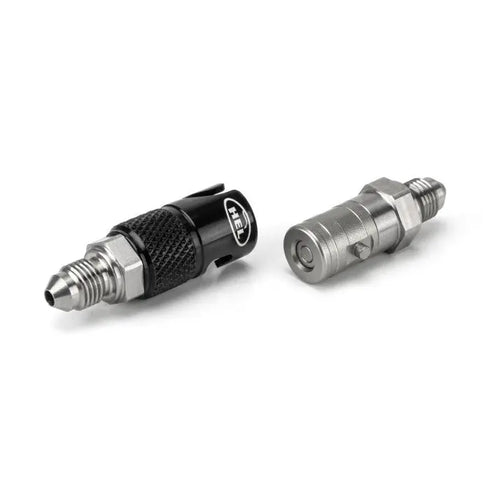

HEL Titanium -3 AN Quick Release Dry Break Coupling
When it's a race against time the HEL quick release dry break system facilitates the rapid removal and installation of brake lines, brake calipers, clutch lines, and gearboxes whilst eliminating any fluid or pressure loss during pit stops and maintenance at the race track.
The dry break system is protected from the corrosive effects of DOT 3, 4, and 5.1 fluids by a high quality Titanium construction and DOT-safe EPDM O-ring seals. A smooth swivel bayonet locking system is combined with high-pressure springs to guarantee the clean and secure transfer of brake fluid, eliminating the ingress of air during the quick connection of both couplings.
Adding a quick release dry break coupler to any HEL brake or clutch system voids the lifetime warranty for road use. This product is intended for use only by individuals competent with brake systems in motorsport applications.
The HEL Performance range of adapters and fittings presents a versatile solution for routing fluid lines such as Fuel, Oil, and Water across a vast range of applications throughout the Motorsport and Automotive industry. Our fittings and adapters are widely embraced as the industry standard in high-performance applications, where fluid systems are required to challenge intense pressures, extreme temperatures and demanding conditions. Every component, from Aluminium hose ends to Stainless Steel bleed nipples, has been CNC machined using premium materials, delivering exceptional resistance to corrosion and wear. This commitment guarantees longevity and unwavering durability, even amidst the most demanding automotive environments.
Specifications
| Component Type | Quick Release Dry Break Coupler |
| Connection Type | Double Shut Off System |
| Application | HEL Brake & Clutch Systems (Motorsport ONLY) |
| Inlet Thread (Male) | AN3 / -3 AN / 3/8-24" UNF |
| Outlet Thread (Male) | AN3 / -3 AN / 3/8-24" UNF |
| Flow Diameter (Internal) | 3.20mm / 0.12" / 1/8" |
| Length (Overall - Including Threads) | 70.00mm / 2.75" |
| Width (Widest Point) | 16.30mm / 0.64" |
| Weight | 25g / 0.05lbs |
| Operating Pressure (Maximum) | 5100 PSI / 351.6 BAR |
| Fluid Compatibility | DOT 3, 4 & 5.1 |
| Material (O-Ring Seal) | EPDM |
| Material | 6AL4V Titanium |
| Finish | Anodised Black & Silver |
| Brand | HEL |
What's Included
Before operating the vehicle, it is the installer's responsibility to ensure that all components are fully tightened and secure. Failure to do so could result in failure, accident, or severe injury.
