Powerflex Black Series Engine Mount Insert Kit BMW 2 Series F22 F23 xDrive 13+
Fast Shipping Options Available
Buy now pay Later with Klarna
4.9 Stars Over Hundreds Of Reviews
Deadline? Message before ordering
Improve drivetrain location on your BMW 2 Series F22 F23 xDrive with the Black Series Engine Mount Insert Kit from Powerflex. Developed for the listed application, this polyurethane component is designed to reduce excess movement at the relevant mounting point and provide a more consistent connection between the drivetrain and chassis.
IMPORTANT – CHECK FITMENT BEFORE ORDERING
Powerflex applications can vary by chassis, model year, factory option, bush location and component size. Please match the listed vehicle details and Powerflex part number PFF5-4020BLK to your vehicle before ordering. If your vehicle uses a size-specific bush, measure the original component or anti-roll bar where applicable.
BLACK SERIES – PERFORMANCE USE
Powerflex Black Series products are intended for more focused performance and motorsport applications. Depending on the mounting position, increased stiffness can result in additional noise, vibration or harshness compared with standard rubber bushes.
Product Overview＋

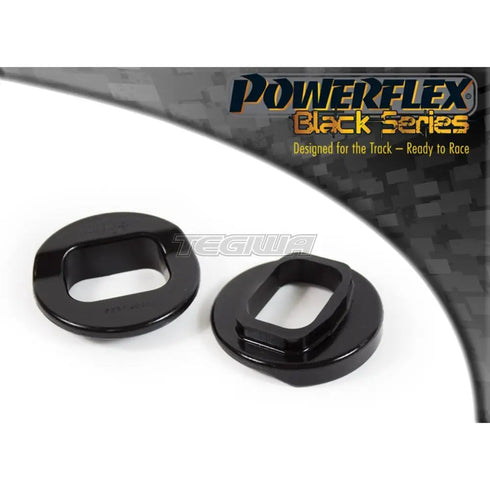

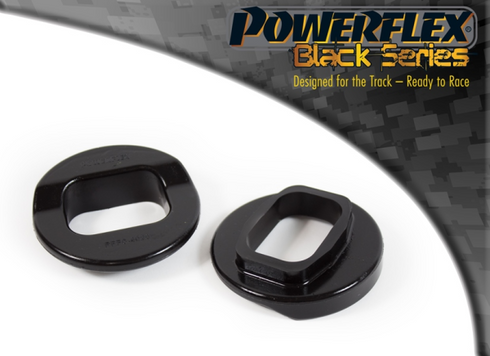

PFF5-4020BLK and PFF5-4021BLK Engine Mount Insert Kits are an intermediate alternative to the BMW Motorsport aluminium inserts and much stiffer full replacement engine mounts available on the aftermarket. Made in our Black 95A durometer material, they are designed to fit the voiding of the OE mounts snuggly to restrict engine movement, perfect for those with tuned track cars. Their design and flexibility also mean they can be fitted to the vehicle without removing the engine mounts themselves. Reducing engine/transmission movement by way of upgraded inserts has the following benefits: - Sharper throttle response - Improved gear shifting - More direct power transfer - More balanced on/off throttle handling - Prolonged life of the OE mounts. A small increase in NVH, usually at idle, should be expected when stiffening the connecting mount between the engine and chassis. The harder the material used, the greater the NVH transmitted. Fits N52, N54, N55 and B58 engines only.
Fitting Instructions
OEM Part No:22116787659 (Left) / 22116855460 (Right), 22116760330 / 22116773744

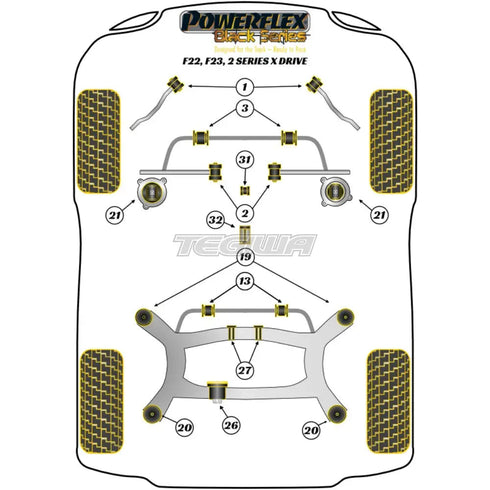

Diagram Reference: 21
Bush Size: N/A
Pack Size: 1
Manufacturer information retained from the product data supplied for this Powerflex part.
Key Features＋
- Black Series: Powerflex Black Series specification as identified in the listing/manufacturer information.
- Application-Specific Design: Specified for BMW 2 Series F22 F23 xDrive 13+.
- Powerflex Part Number: PFF5-4020BLK for straightforward fitment checking and reordering.
- Polyurethane Construction: Designed as a durable alternative to ageing or excessively flexible original rubber components where applicable.
- Focused Component Control: Helps manage unwanted movement at the mounting point relevant to this part.
- Drivetrain Location: Intended to reduce excessive movement at the relevant differential, gearbox, subframe or related mounting point.
Why Upgrade?＋
- Helps control unwanted drivetrain movement at the relevant mounting point.
- Can sharpen the response between the engine, gearbox, differential and chassis where the original rubber mounting has softened or worn.
- Suitable for drivetrain refreshes and performance-focused builds where more consistent component location is required.
- A durable polyurethane upgrade for a known wear or movement point on the listed application.
Technical Specifications＋
- Manufacturer: Powerflex
- Product: Black Series Engine Mount Insert Kit
- Part Number / SKU: PFF5-4020BLK
- Range: Black Series
- Product Category: Drivetrain
- Durometer: 95A
Vehicle Compatibility＋
- Vehicle Brand: BMW
- Vehicle Model: 2 Series
- Vehicle Variant / Chassis: F22 F23 xDrive
- Listing Application: BMW 2 Series F22 F23 xDrive 13+
- Powerflex Reference: PFF5-4020BLK
✔ Match the chassis/model and Powerflex part number before ordering.
✔ Check any diameter, drivetrain or factory-option requirements stated in the manufacturer overview.
✔ If you are unsure, contact DC Prestige with your registration or full vehicle specification before purchase.
Installation＋
- Drivetrain bush installation varies by application and may require supporting or lowering the differential, gearbox, subframe or related assembly.
- Correct installation orientation and lubrication should be followed where specified by Powerflex.
- Stiffer drivetrain bushes can increase transmitted noise, vibration or harshness depending on the vehicle and bush position.
- Professional installation is recommended where specialist support, pressing or extraction equipment is required.
Frequently Asked Questions＋
Q: Will this fit my BMW 2 Series F22 F23 xDrive?
A: This listing is specified for BMW 2 Series F22 F23 xDrive 13+. Always confirm the chassis, variant, component size where relevant, and Powerflex part number PFF5-4020BLK before ordering.
Q: Is this suitable for normal road use?
A: Black Series is the more focused Powerflex range and is primarily aimed at performance and motorsport applications. Increased stiffness can transmit more noise, vibration or harshness than standard rubber or softer road-oriented bushes.
Q: Will fitting this change noise, vibration or ride quality?
A: It can. Any reduction in bush compliance may transmit more feedback through the chassis. The effect depends on the product, its mounting position and the Powerflex range used.
Q: Is professional installation recommended?
A: Yes where the job requires pressing, cutting, lowering a subframe/drivetrain component, alignment work or specialist tools. Correct installation is important for bush life and vehicle performance.
Q: How can I confirm I am ordering the correct part?
A: Match your vehicle, chassis and any size-specific information to the listing, then verify the Powerflex reference PFF5-4020BLK. DC Prestige can also help check fitment before ordering.
