Setrab PROLINE 19 Row Oil Cooler 405mm Length (Series 9) with M22 Ports

£182.68

Brackets
No Brackets
Top and Bottom Brackets
Top Bracket
Bottom Bracket
Adapters
No Adapters
2x Male -6 AN
2x Male -8 AN
2x Male -10 AN
2x Male -12 AN
2x Swivel Banjo -8 AN
2x Swivel Banjo -10 AN

Free UK Mainland Shipping On Orders Over £99

9am - 6pm Live Chat Help

4.7 / 5 Stars On Trust Pilot

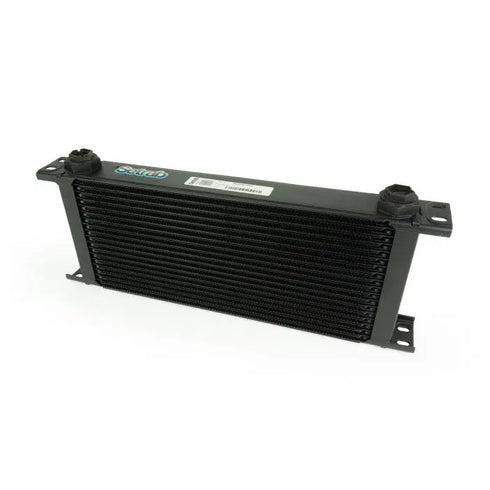

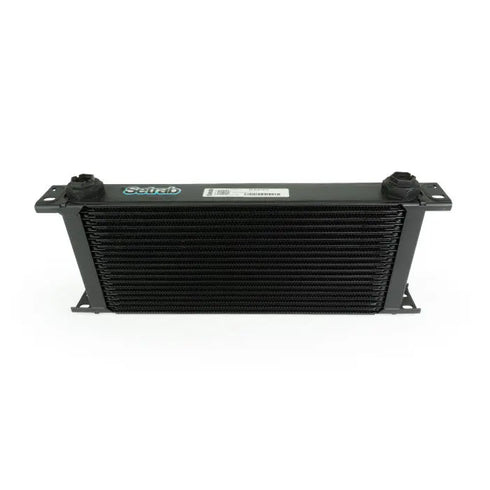

Setrab PROLINE 19 Row Oil Cooler 405mm Length (Series 9) with M22 Ports

Introducing Setrab, the #1 supplier of high-performance oil coolers trusted by winning motorsport teams across the world. Designed for the most demanding racing environments, Setrab oil coolers are the ultimate choice for racing cars, motorcycles, tuners and even motorhomes and towing vehicles. With Setrab, you can rely on unparalleled quality and reliability.

The Setrab PROLINE oil cooler series offers versatile mounting options, allowing installation in front or behind radiators and air condensers. Their coolers are designed to be placed within the airflow path for optimal cooling performance. Additionally, the PROLINE range features special M22 x 1.5 female ports, enabling easy integration with a variety of AN size hoses. This adaptability simplifies the installation process and caters to different setups.

When you choose Setrab, you're investing in a cooling solution that has been rigorously tested and proven on the track. Their oil coolers deliver exceptional performance and reliability, ensuring your engine stays cool even under the most demanding conditions. With Setrab, you can experience the difference in performance, longevity, and peace of mind that comes from using the best in the business.

Dimensions
Setrab PROLINE Oil Cooler Dimensions
Rows 19
Length (L) 405mm
Height (H) 146mm
Depth (D) 50mm
Specifications
Working Pressure 0-10 bar(g) dynamic
Pressure Pulsation Endurance 200k pulsations, 0-10 bar(g), 2 Hz, 60°C oil temp
Max Pressure 12 bar(g)
Burst Pressure 37 bar(g)
Pressure Test 10 bar(g)
Leak Test 4 bar(g)
Working Temperature -40°C to 150°C
Corrosion Endurance 20 days according to SWAAT G85-94 A3
Inner Cleanliness ISO 4406 16/14
General Dimensional Tolerances ISO 2768-v
Material Aluminium alloys
Max Connection Tightening Torque 40 Nm
