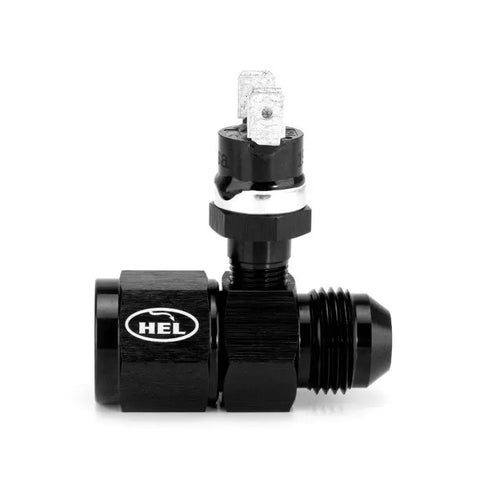

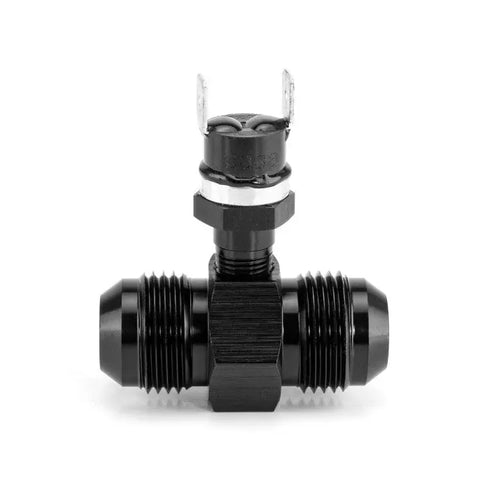

Setrab USA Oil & Coolant Thermal Switch with Inline Port Adapter
Designed for integration with any automotive oil or coolant system that features AN threads. This thermal switch activates a 12-volt accessory such as an oil pump, or cooling fan relay when the fluid reaches the prescribed temperature. Three temperature options are available: 82°C (180°F), 88°C (190°F) and 93°C (200°F), to suit all requirements and applications.
*Please note this thermal switch must not be wired directly to an electric fan, or oil pump and must only be used to trigger the relay as it is not rated for excessive current draw.
This product listing offers the option to select from a range of inline port adapter thread sizes and configurations. If only the individual thermal switch is required, please see our alternative listing.
Switch Temperature Options
| SKU: | #TS180 | #TS190 | #TS200 |
| Activation Temperature (Preset) | 82°C (180°F) | 88°C (190°F) | 93°C (200°F) |
| Automatic Reset Temperature | 74°C (165°F) | 80°C (175°F) | 85°C (185°F) |
Specifications
| Component Type | Thermal Sensor/Switch w/ Inline Port Adapter |
| Contact Type | Normally Open |
| Thread Size | 1/8" NPT (Male) |
| Includes Inline Port Adapter? | Yes |
| Activation & Reset Temp. Tolerance | +/- 2°C (+/- 3.6°F) |
| Terminal Size (2) | Amp #250 Tab (1/4") |
| Circuit Resistance | 50mΩ Maximum |
| Insulation Resistance | 100MΩ Minimum @ DC 500V |
| Dielectric Strength | AC 1250V (1 Minute) or AC 1800V (3 Seconds) |
| Electrical Rating | 16A 250VAC / 15A 125VAC / 10A 250VAC (Resistive Load) |
| Brand | Setrab USA |
What's Included
- 1x Thermal Switch
- 1x Inline Port Adapter w/ AN Threads
