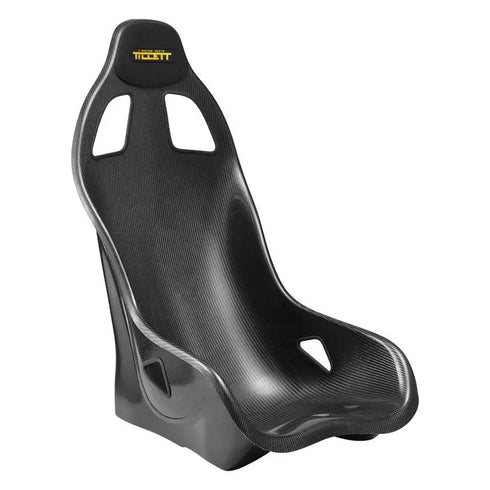

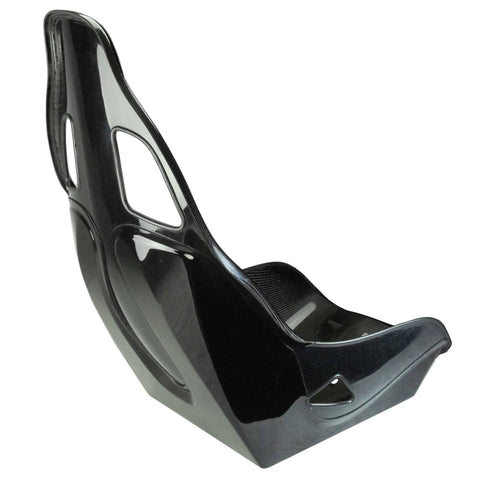

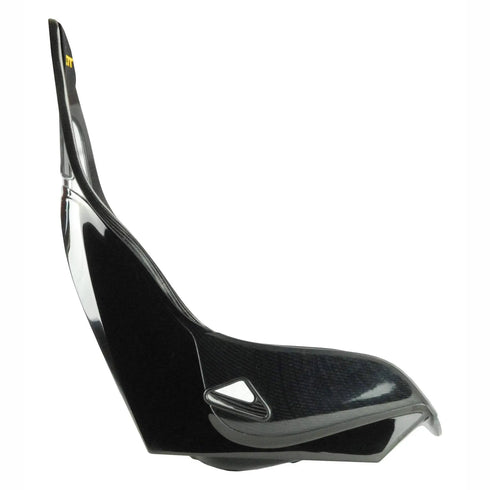

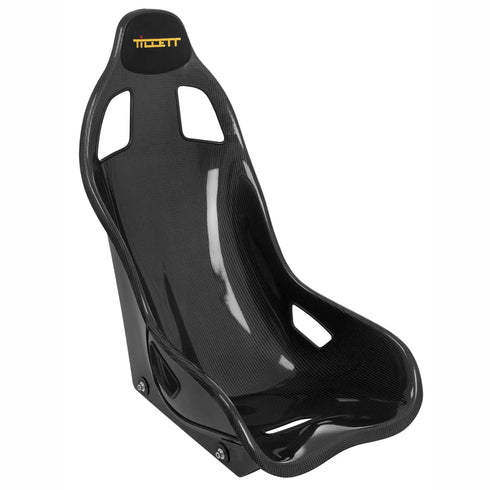

The Tillett B6 is a narrow seat suited to many kit car, sports car and trackday cars. The headrest has been moved back to prevent the drivers head room being pushed forward when wearing a crash helmet and the shoulder belt holes have been designed to allow the use of a FHR / HANS device. The B6 seat positions the driver lower in the car which benefits taller drivers and also helps lower the vehicles centre of gravity.

• Narrow design ideal for kit cars or other cars with smaller cockpits
• Designed to be compatible with an FHR device and race harnesses
• Lightweight GRP or ultra lightweight Carbon fibre/GRP shell options
• Body mirroring shell shape provides high levels of comfort and provides maximum chassis feedback to the driver
• Suitable for most driver shapes / sizes. Standard size: Drivers up to 100kg with a 36" (91.4cm) waist/ XL Size: Drivers up to 130kg with a 40" (102cm) waist.

The Tillett B6 seat is designed and manufactured in the UK using a twin skin design which keeps the seat very rigid and allows for increased chassis feedback to the driver. Although the seat is narrow is it able to accommodate most driver shapes and sizes. High side bolsters provide excellent lateral support while providing impact protection for the legs. The ergonomic shape of the seat has been designed to provide optimum support with high levels of comfort even when used without padding. The hip holes have also been enlarged to give easier access for wider lap belts. The composite shell is made so that the outer edge can be either removed for narrow 40 cm tubs or left on to create a continuous rolled edge around the whole perimeter of the seat. the internal dimensions for both options are the same. The B6 is supplied complete with a Dinamica suede covered headrest pad as standard. A 2 piece Dinamica trimmed pad set is available to purchase separately if required.

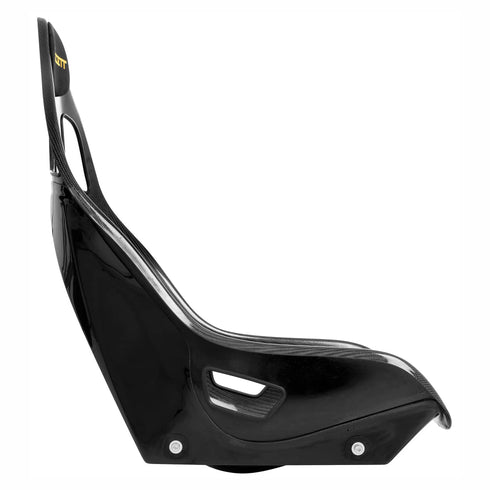

The B6 has options for either base or side mounting points. For the side mount option specific mounts are available HERE. For the base mount version the Tillett Adjustment Seat Runner Set (available separately) can be bolted directly to the underneath (please note that the runners must be spaced 1cm from the underside of the seat to give clearance for the handle to operate). The runners and spacers are available HERE.
